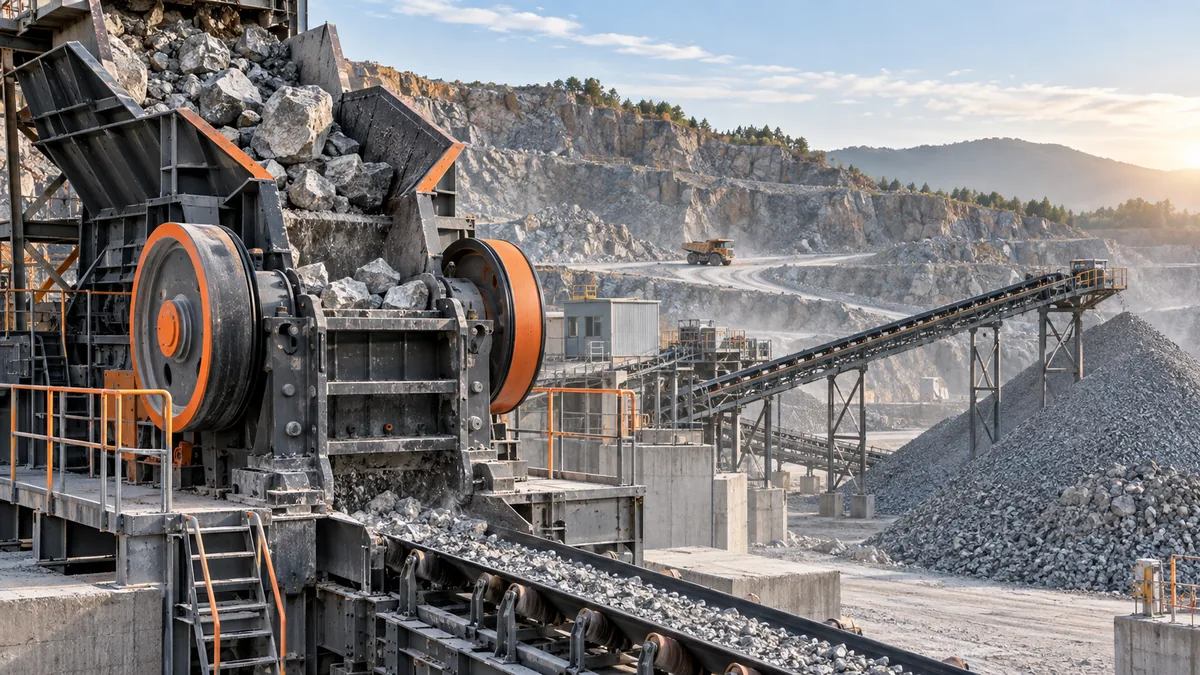

C Series Jaw Crusher
Heavy-duty primary crushing for hard and abrasive rock. Final model and configuration are confirmed from feed size, material properties, target capacity, required output and site conditions.
Designed for the first reduction stage
The C Series Jaw Crusher is intended for the primary reduction of hard rock, ore and suitable recycled feed before secondary crushing or screening. The recommended configuration is reviewed as part of the complete duty, including controlled feeding, discharge transfer, downstream equipment, maintenance access and operating schedule.
Suitable feed
Quarried rock, ore and prepared recycled material where high compressive strength or abrasion must be considered.
Process position
Primary reduction after controlled feeding, normally followed by conveying, screening or secondary crushing.
Engineering focus
Feed opening, chamber loading, jaw profile, wear materials, discharge setting, drive arrangement and maintenance access.
Compression crushing with controlled feed
Material enters the crushing chamber between the fixed and moving jaw plates. The moving jaw applies repeated compressive force, reducing the feed until it can pass through the discharge opening.
Stable output depends on controlled feeding, suitable feed grading, correct discharge settings and effective transfer to the next process stage.
- Compression crushing suited to hard and abrasive feed
- Jaw profile and wear materials reviewed for the application
- Discharge adjustment and wear-part access considered during selection
- Feeder, conveyor and downstream circuit reviewed as one duty
Information required before model confirmation
Catalogue ranges support early planning. Final capacity and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, compressive strength, abrasiveness and moisture. | Wear selection, power demand and equipment suitability. |
| Feed conditions | Maximum lump size, typical size distribution and feeding method. | Feed opening, chamber loading and feeder configuration. |
| Required capacity | Target tonnes per hour, operating hours and expected availability. | Crusher size, drive and complete circuit capacity. |
| Finished product | Required discharge size and downstream product specifications. | Discharge setting, secondary stage and screening arrangement. |
| Site conditions | Project country, altitude, power standard, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the crusher with the complete duty
Core equipment review
- Crusher model and chamber configuration
- Drive arrangement and guarding
- Jaw plates and recommended wear materials
- Base frame and agreed equipment documentation
Optional project coordination
- Feeding, conveying and screening equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What material information is needed?
Provide the material type, compressive strength or reliable hardness data, abrasiveness, moisture and any clay or contamination that may affect feeding and crushing.
Is the catalogue capacity the final plant output?
No. Actual output depends on feed grading, material behavior, discharge setting, feeder performance, downstream restrictions and operating conditions.
How is the feed opening selected?
The opening must be checked against both the maximum lump size and the typical feed distribution, with an appropriate allowance for stable feeding.
Can HNLANGBO supply the complete crushing line?
Yes. Feeders, crushers, screens, conveyors and supporting systems can be reviewed together after the required process and supply boundary are confirmed.
Are spare and wear parts available?
Recommended wear parts and spare-parts planning can be included according to the selected model, material characteristics and agreed operating scope.
Request a C Series Jaw Crusher proposal
Send the material, maximum feed size, target capacity, finished-product sizes, project country and preferred contact method.
Email: sales@langbomachine.com
WhatsApp: +86 155 1713 3739
- Material and maximum feed size
- Target capacity and output sizes
- Project country and delivery scope
