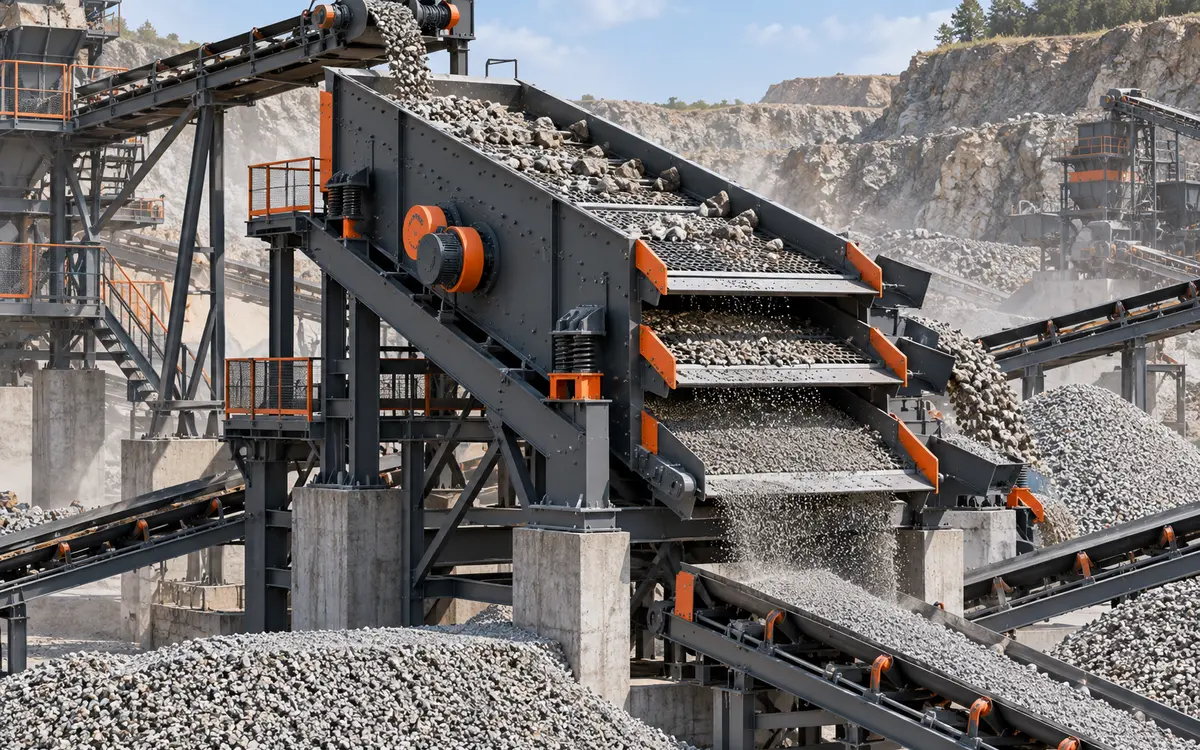

Inclined Vibrating Screen
Multi-deck classification for aggregate and mineral duties. Screen area, deck arrangement and media are selected from feed rate and separation targets.
Configured around the actual process duty
The Inclined Vibrating Screen is selected from confirmed material, feed, capacity, product and site information. Its duty is reviewed together with upstream feeding, downstream transfer, classification, utilities, maintenance access and the agreed operating schedule.
Suitable feed
Crushed aggregate and mineral feed with confirmed grading, moisture and fines content.
Process position
Product sizing, scalping or closed-circuit classification after crushing.
Engineering focus
Screen area, inclination, deck count, aperture, media type, vibration duty and support structure.
Stratification on inclined decks
Vibration and deck inclination move material forward while particles stratify. Material smaller than each aperture passes through to the corresponding product stream.
Stable performance depends on controlled feed, correct operating settings, suitable wear or process components and effective coordination with the surrounding plant.
- Application reviewed from confirmed material and duty data
- Operating configuration matched to the required process result
- Wear, maintenance and access requirements considered during selection
- Upstream and downstream equipment reviewed as one process
Information required before model confirmation
Catalogue ranges support early planning. Final capacity and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, hardness or strength, abrasiveness, moisture and contamination. | Equipment suitability, wear selection and power demand. |
| Feed conditions | Maximum size, typical grading, feed rate and feeding method. | Inlet, loading pattern and upstream configuration. |
| Required duty | Target capacity, operating hours and expected availability. | Equipment size, drive duty and complete circuit capacity. |
| Required product | Target result, discharge specification and downstream process. | Operating configuration and downstream arrangement. |
| Site conditions | Country, altitude, power standard, utilities, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the equipment with the complete duty
Core equipment review
- Model and process configuration
- Drive arrangement, controls and guarding
- Process and wear components for the application
- Base arrangement and agreed equipment documentation
Optional project coordination
- Feeding, conveying, classification and auxiliary equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What information is needed to select this equipment?
Share feed grading, throughput, required cut sizes, moisture, clay content and operating hours.
Does the published capacity guarantee site performance?
Screen capacity and separation efficiency depend on feed grading, deck area, aperture, moisture and loading; final fractions require a circuit review.
How are screen media and deck arrangement chosen?
Apertures, media and deck layout follow the target fractions, feed behavior and maintenance needs.
Can the screen be paired with crushers and conveyors?
Yes. Feed distribution, recirculation and discharge routes should be considered together in the plant layout.
Which service items should be planned?
Screen media, vibration components and other replacement items depend on the selected machine and operating duty.
Request a Inclined Vibrating Screen proposal
Send the material, feed condition, target capacity, required product, project country and preferred contact method.
Email: sales@langbomachine.com
WhatsApp: +86 155 1713 3739
- Material and maximum feed size
- Target capacity and output sizes
- Project country and delivery scope
