Magnetic Separator
Magnetic separation for suitable ores and industrial minerals. Field intensity and drum configuration depend on mineral response and feed conditions.
Configured around the actual process duty
The Magnetic Separator is selected from confirmed material, feed, capacity, product and site information. Its duty is reviewed together with upstream feeding, downstream transfer, classification, utilities, maintenance access and the agreed operating schedule.
Suitable feed
Prepared ore or industrial mineral feed with confirmed magnetic susceptibility and grading.
Process position
Recovery, concentration or removal of magnetic components within a processing circuit.
Engineering focus
Mineralogy, particle size, slurry or dry-feed condition, field intensity, drum arrangement and concentrate targets.

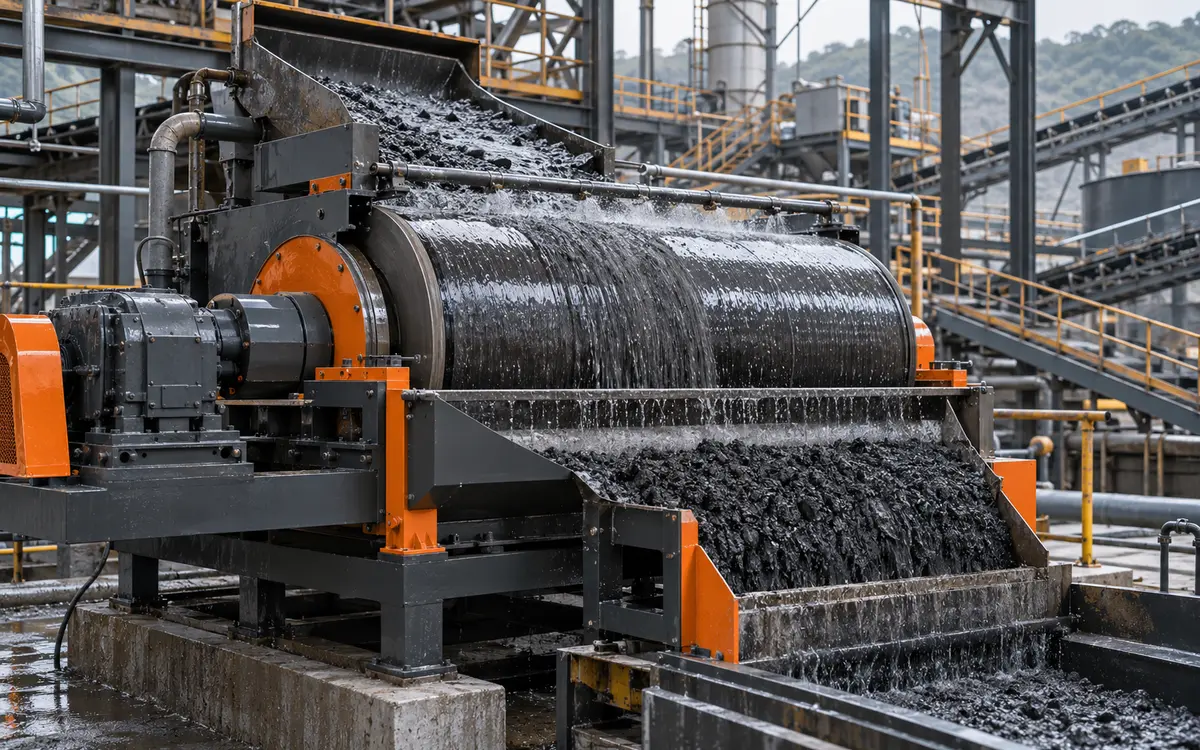

Controlled separation by magnetic response
Feed passes through a controlled magnetic field. Responsive particles are retained or redirected while non-magnetic material follows a separate path.
Stable performance depends on controlled feed, correct operating settings, suitable wear or process components and effective coordination with the surrounding plant.
- Application reviewed from confirmed material and duty data
- Operating configuration matched to the required process result
- Wear, maintenance and access requirements considered during selection
- Upstream and downstream equipment reviewed as one process
Information required before model confirmation
Catalogue ranges support early planning. Final capacity and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, hardness or strength, abrasiveness, moisture and contamination. | Equipment suitability, wear selection and power demand. |
| Feed conditions | Maximum size, typical grading, feed rate and feeding method. | Inlet, loading pattern and upstream configuration. |
| Required duty | Target capacity, operating hours and expected availability. | Equipment size, drive duty and complete circuit capacity. |
| Required product | Target result, discharge specification and downstream process. | Operating configuration and downstream arrangement. |
| Site conditions | Country, altitude, power standard, utilities, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the equipment with the complete duty
Core equipment review
- Model and process configuration
- Drive arrangement, controls and guarding
- Process and wear components for the application
- Base arrangement and agreed equipment documentation
Optional project coordination
- Feeding, conveying, classification and auxiliary equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What information is needed to select this equipment?
Share ore mineralogy, magnetic response or test results, feed size, solids concentration, target recovery and throughput.
Does the published capacity guarantee site performance?
Separation results depend on mineral association, liberation size, feed condition and magnetic response; capacity alone does not predict concentrate grade or recovery.
Is magnetic separation suitable for my ore?
It should be checked against representative ore analysis and separation test results before a process route is selected.
Can it be integrated with grinding or classification?
Yes. The separation stage can be reviewed with the upstream preparation and downstream handling after the process route is established.
What data is needed for wear and spare parts?
Provide the selected model, feed abrasiveness and service conditions so relevant consumables and replacement parts can be identified.
Request a Magnetic Separator proposal
Send the material, feed condition, target capacity, required product, project country and preferred contact method.
Email: sales@langbomachine.com
WhatsApp: +86 155 1713 3739
- Material and maximum feed size
- Target capacity and output sizes
- Project country and delivery scope
