Mobile Impact Crushing Station
A wheel-mounted impact crushing station for secondary reduction and aggregate shaping. Feed grading, impact chamber duty, recirculation and discharge arrangement determine the final configuration.
Configured around the actual process duty
The Mobile Impact Crushing Station is selected from confirmed material, feed, capacity, product and site information. Its duty is reviewed together with upstream feeding, downstream transfer, classification, utilities, maintenance access and the agreed operating schedule.
Suitable feed
Prepared medium-hard feed within the confirmed impact crusher limits.
Process position
Towable secondary reduction after primary crushing.
Engineering focus
Impact chamber and rotor duty, wear selection, feeder, product sizing and trailer supports.

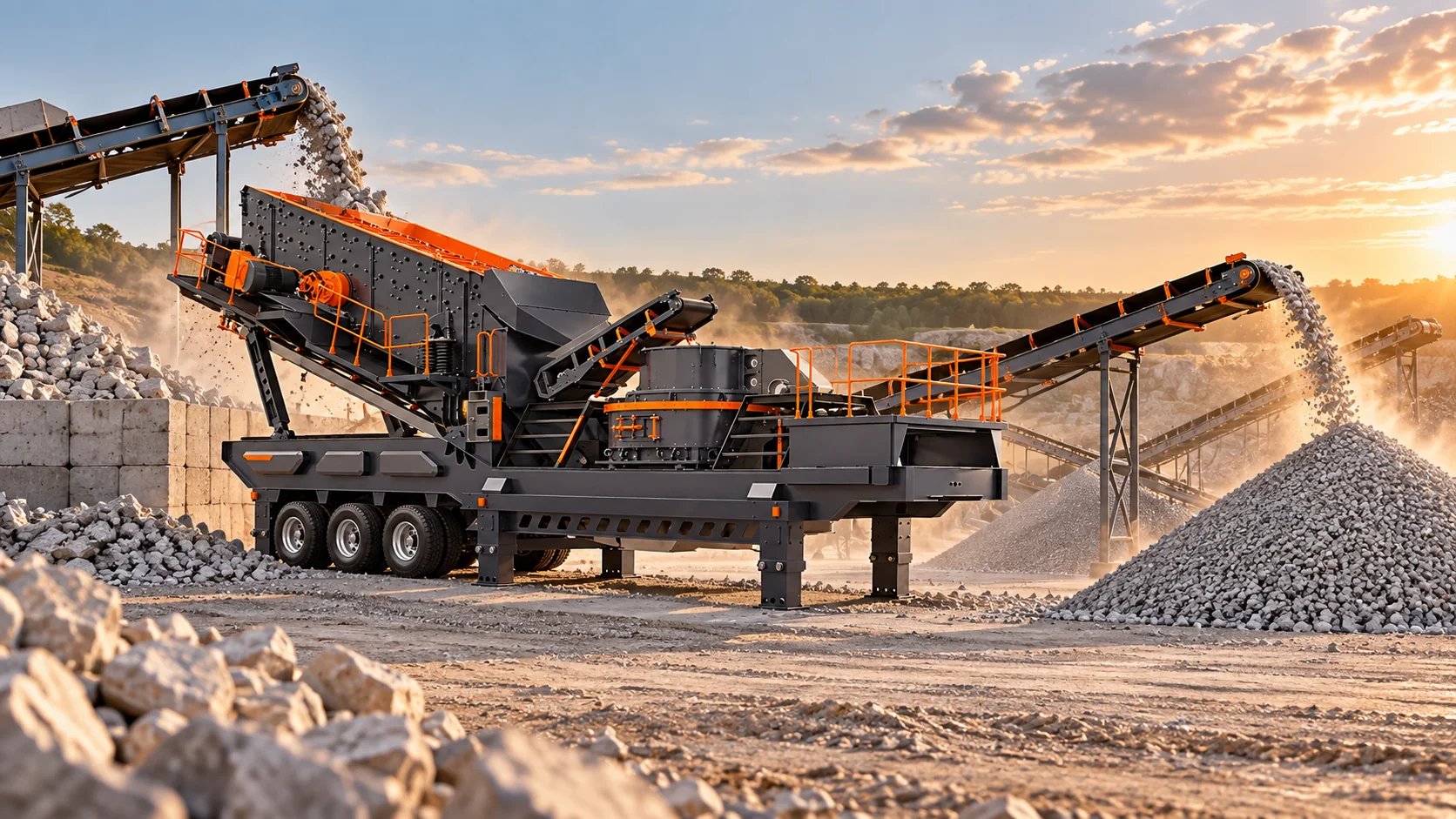

Mobile impact crushing close to the face
Material is metered from the integrated feeder into the impact chamber, then discharged to a conveyor and the agreed screening circuit. The trailer is supported and connected before operation.
Stable performance depends on controlled feed, correct operating settings, suitable wear or process components and effective coordination with the surrounding plant.
- Application reviewed from confirmed material and duty data
- Operating configuration matched to the required process result
- Wear, maintenance and access requirements considered during selection
- Upstream and downstream equipment reviewed as one process
Information required before model confirmation
Catalogue ranges support early planning. Final capacity, feed size and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, hardness or strength, abrasiveness, moisture and contamination. | Equipment suitability, wear selection and power demand. |
| Feed conditions | Maximum size, typical grading, feed rate and feeding method. | Inlet, loading pattern and upstream configuration. |
| Required duty | Target capacity, operating hours and expected availability. | Equipment size, drive duty and complete circuit capacity. |
| Required product | Target result, discharge specification and downstream process. | Operating configuration and downstream arrangement. |
| Site conditions | Country, altitude, power standard, utilities, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the equipment with the complete duty
Core equipment review
- Model and process configuration
- Drive arrangement, controls and guarding
- Process and wear components for the application
- Base arrangement and agreed equipment documentation
Optional project coordination
- Feeding, conveying, classification and auxiliary equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What information is needed to select this equipment?
Share material, feed size, target fractions, throughput, relocation frequency, site access and available power.
Does the published capacity guarantee site performance?
Actual output depends on the crusher or screen duty, feed behavior and downstream handling; published capacity is not a site guarantee.
What transport and setup limits should be checked?
Provide road access, site turning space, lifting or towing constraints and local power arrangements before configuration is finalized.
Can it work with other mobile or fixed equipment?
Yes. Interfaces for feeding, screening, conveying and stockpiling should be checked for the proposed site.
How are spares and support planned?
Wear parts and service needs depend on the selected processing unit, drive arrangement and operating conditions.
Request a Mobile Impact Crushing Station proposal
Send the material, feed condition, target capacity, required product, project country and preferred contact method.
Email: sales@langbomachine.com
WhatsApp: +86 155 1713 3739
- Material and maximum feed size
- Target capacity and output sizes
- Project country and delivery scope
