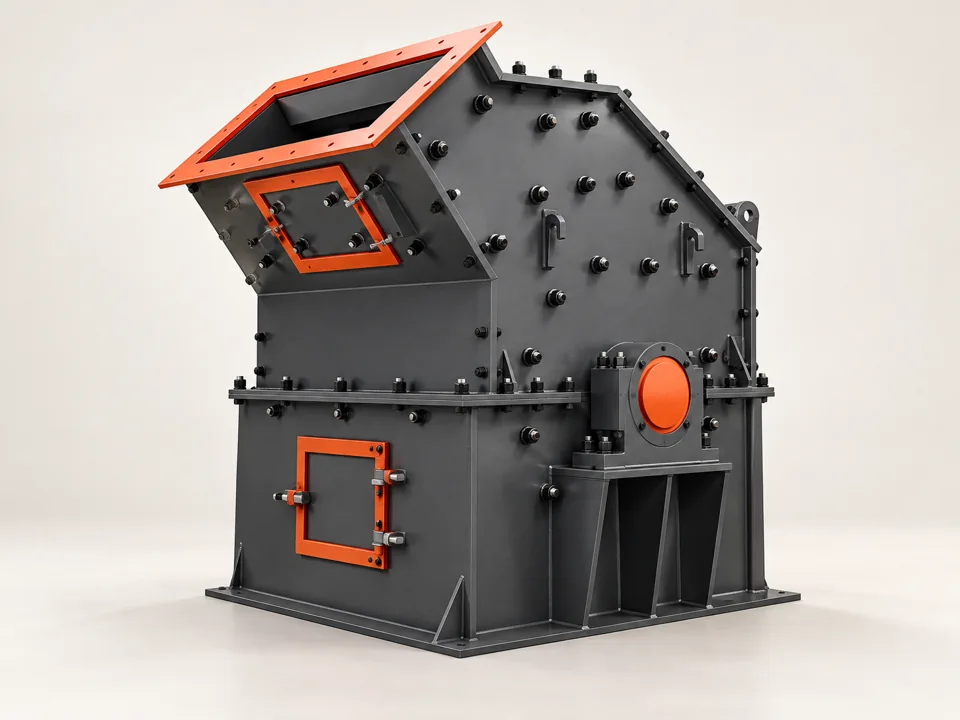

PXJ Fine Crusher
Fine crushing for suitable low-to-medium hardness materials. Rotor, hammer and grate settings are selected for the required fine output.
Configured around the actual process duty
The PXJ Fine Crusher is selected from confirmed material, feed, capacity, product and site information. Its duty is reviewed together with upstream feeding, downstream transfer, classification, utilities, maintenance access and the agreed operating schedule.
Suitable feed
Prepared limestone and comparable low-to-medium hardness material with controlled moisture.
Process position

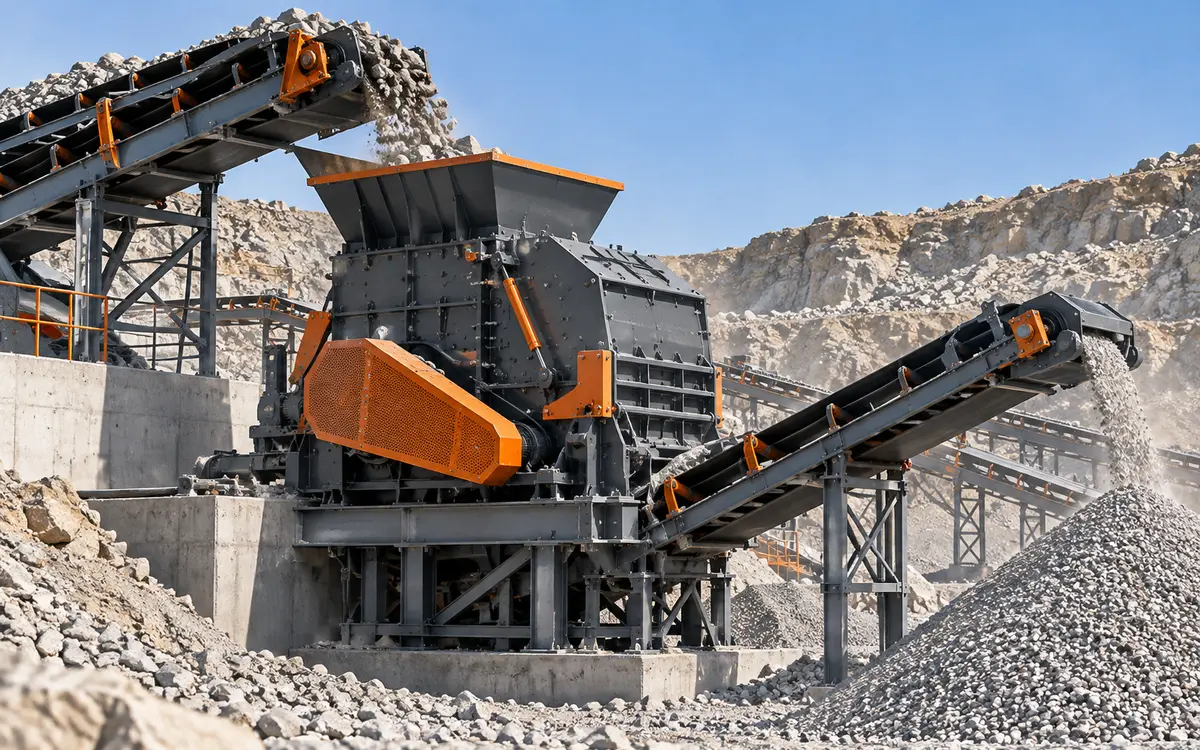

Fine reduction after primary or secondary crushing and before classification.
Engineering focus
Feed size, rotor duty, hammer material, grate setting, wear rate and downstream classification.
Repeated impact for fine reduction
Material is struck by the high-speed rotor and repeatedly reduced against internal impact surfaces before passing through the configured discharge zone.
Stable performance depends on controlled feed, correct operating settings, suitable wear or process components and effective coordination with the surrounding plant.
- Application reviewed from confirmed material and duty data
- Operating configuration matched to the required process result
- Wear, maintenance and access requirements considered during selection
- Upstream and downstream equipment reviewed as one process
Information required before model confirmation
Catalogue ranges support early planning. Final capacity and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, hardness or strength, abrasiveness, moisture and contamination. | Equipment suitability, wear selection and power demand. |
| Feed conditions | Maximum size, typical grading, feed rate and feeding method. | Inlet, loading pattern and upstream configuration. |
| Required duty | Target capacity, operating hours and expected availability. | Equipment size, drive duty and complete circuit capacity. |
| Required product | Target result, discharge specification and downstream process. | Operating configuration and downstream arrangement. |
| Site conditions | Country, altitude, power standard, utilities, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the equipment with the complete duty
Core equipment review
- Model and process configuration
- Drive arrangement, controls and guarding
- Process and wear components for the application
- Base arrangement and agreed equipment documentation
Optional project coordination
- Feeding, conveying, classification and auxiliary equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What information is needed to select this equipment?
Share material type and hardness, maximum lump size, feed grading, target fractions, throughput and abrasiveness.
Does the published capacity guarantee site performance?
Actual output depends on feed properties, discharge settings, wear condition and the downstream circuit; published capacity is not a plant guarantee.
How is the crushing stage selected?
The feed opening, reduction ratio and target product should be assessed with the whole crushing and screening circuit.
Can it be integrated with a complete line?
Yes. Feeding, screening, recirculation and conveying can be included in the process review.
What wear parts are relevant?
The selected crushing chamber and material duty determine appropriate liners, hammers or impact parts and the spare-parts plan.
Request a PXJ Fine Crusher proposal
Send the material, feed condition, target capacity, required product, project country and preferred contact method.
Email: sales@langbomachine.com
WhatsApp: +86 155 1713 3739
- Material and maximum feed size
- Target capacity and output sizes
- Project country and delivery scope
