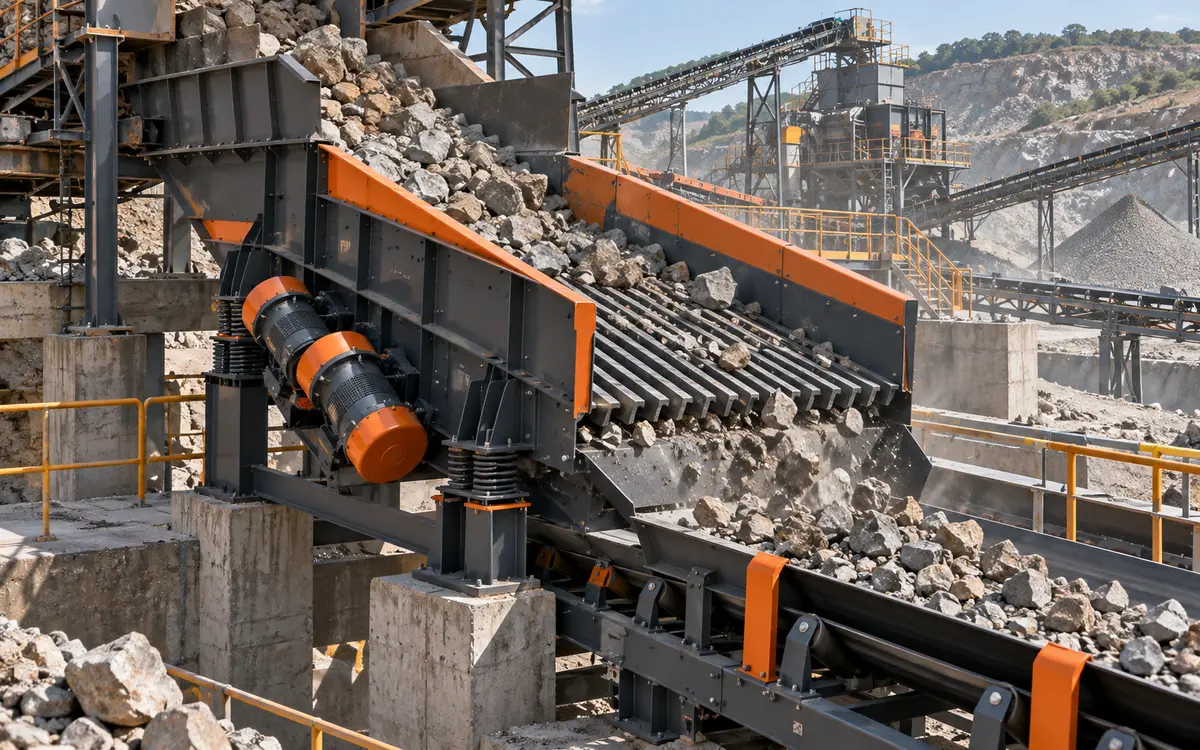

ZSW Vibrating Feeder
Controlled feeding for primary crushing and process stability. Tray size, drive and bar section are reviewed against feed size, density and required rate.
Configured around the actual process duty
The ZSW Vibrating Feeder is selected from confirmed material, feed, capacity, product and site information. Its duty is reviewed together with upstream feeding, downstream transfer, classification, utilities, maintenance access and the agreed operating schedule.
Suitable feed
Run-of-mine rock, aggregate and prepared bulk material within the agreed lump-size range.
Process position
Receives material from a hopper and meters it toward the primary crusher or downstream process.
Engineering focus
Hopper load, tray width, bar spacing, vibration duty, drive sizing and structure interface.
Vibratory conveying with controlled flow
An exciter creates directional vibration that advances bulk material across the feeder deck. The bar section can remove smaller fractions before primary crushing.
Stable performance depends on controlled feed, correct operating settings, suitable wear or process components and effective coordination with the surrounding plant.
- Application reviewed from confirmed material and duty data
- Operating configuration matched to the required process result
- Wear, maintenance and access requirements considered during selection
- Upstream and downstream equipment reviewed as one process
Information required before model confirmation
Catalogue ranges support early planning. Final capacity and equipment selection require confirmed project data.
| Review item | Information to provide | Engineering impact |
|---|---|---|
| Material properties | Material name, hardness or strength, abrasiveness, moisture and contamination. | Equipment suitability, wear selection and power demand. |
| Feed conditions | Maximum size, typical grading, feed rate and feeding method. | Inlet, loading pattern and upstream configuration. |
| Required duty | Target capacity, operating hours and expected availability. | Equipment size, drive duty and complete circuit capacity. |
| Required product | Target result, discharge specification and downstream process. | Operating configuration and downstream arrangement. |
| Site conditions | Country, altitude, power standard, utilities, installation and layout constraints. | Motor, controls, structure, access and delivery documentation. |
Coordinate the equipment with the complete duty
Core equipment review
- Model and process configuration
- Drive arrangement, controls and guarding
- Process and wear components for the application
- Base arrangement and agreed equipment documentation
Optional project coordination
- Feeding, conveying, classification and auxiliary equipment
- Chutes, structures and process-layout communication
- Spare and wear-parts recommendation
- Inspection, delivery and commissioning support scope
Common selection questions
What information is needed to select this equipment?
Share material, maximum lump size, bulk density, target feed rate, hopper geometry and crusher inlet.
Does the published capacity guarantee site performance?
Stable feed rate depends on hopper loading, material flow and feeder settings; a nominal range is not a guarantee for every material.
How is the feeder matched to the crusher?
The feeder width, discharge position and feed control should be checked against the selected crusher opening and site layout.
Can a scalping section be included?
Depending on feed fines and the proposed model, prescreening or grizzly arrangements may be reviewed.
What components require maintenance planning?
Wear liners, springs, vibration components and other service items depend on the selected feeder and duty.
Request a ZSW Vibrating Feeder proposal
Send the material, feed condition, target capacity, required product, project country and preferred contact method.
